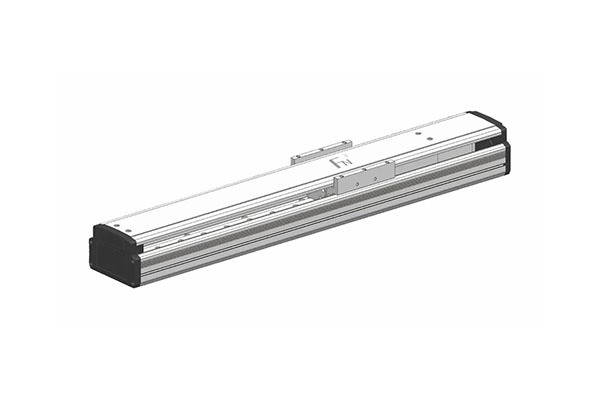

JDN100AC Screw Module

Above repeatability is within stroke 300mm, if longer travel needed, it will be lower.In case stroke over 600 will lead to swing of ball screw , please slow down the speed

Keywords : SummitSteel

Classification :

Screw Module

WhatsApp : ‪+86 13793111850

E-mail : tfnc@tfnbearing.com

PRODUCT DETAILS

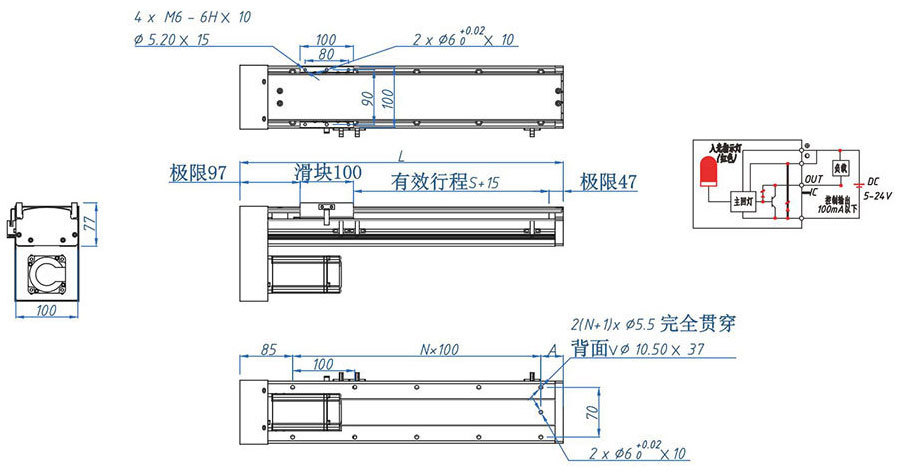

JDN100AC-FD : Motr Botomside

Working Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
N	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11	12
L	310	360	410	460	510	560	610	660	710	760	810	860	910	960	1010	1060	1110	1160	1210	1272
A	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75

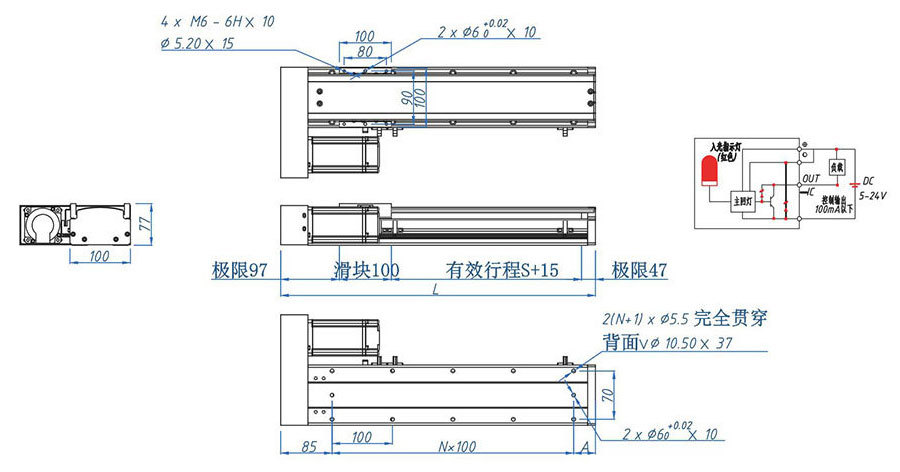

JDN100AC-FO:Motr Exposed

Working Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
N	3	3	4	4	5	5	6	6 663	7	7	8	8	9	9	10	10	11	11	12	12
L	313	363	413	463	513	563	613	6 663	713	763	813	863	913	963	1010	1063	1113	1163	1213	1263
A	83	33	83	33	83	33	83	33	83	33	83	33	83	33	83	33	83	33	83	33

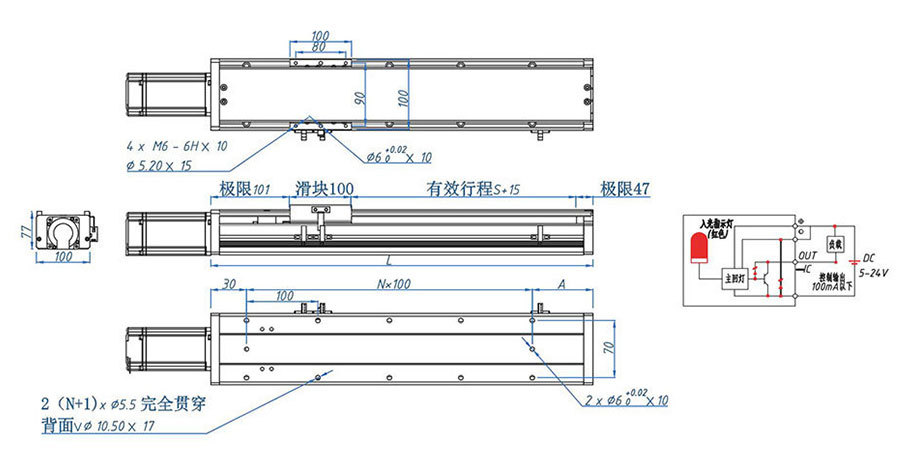

JDN100AC-FR:Motr Right side

Working Strok	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
N	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11	12
L	310	360	410	460	510	560	610	660	710	760	810	860	910	960	1060	1060	1110	1160	1210	1272
A	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75

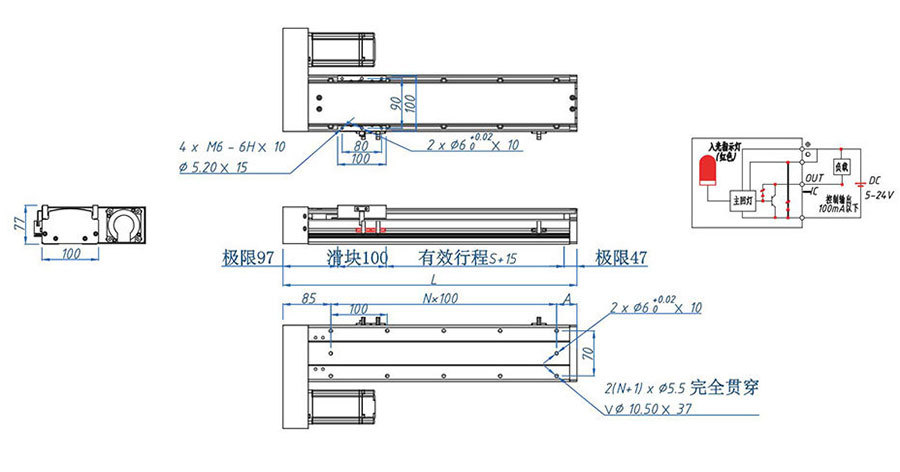

JDN 100AC-FL:Motr Left side

Working Strok	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
N	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11	12
L	310	360	410	460	510	560	610	660	710	760	810	860	910	960	1010	1060	1110	1160	1210	1272
A	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75	125	75
