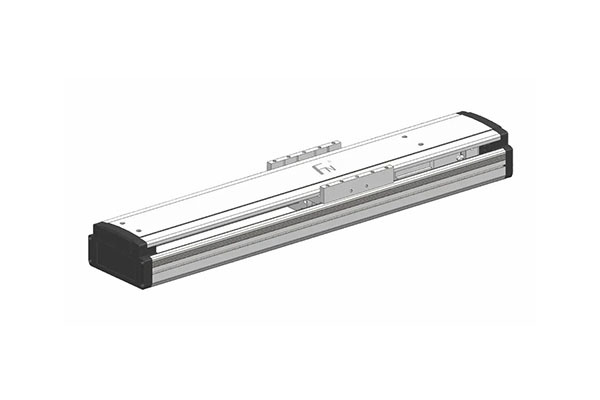

JDN135AC Screw Module

Linear guides were developed to meet the current trend toward high precision and high performance in mechanization.

Keywords : SummitSteel

Classification :

Screw Module

WhatsApp : ‪+86 13793111850

E-mail : tfnc@tfnbearing.com

PRODUCT DETAILS

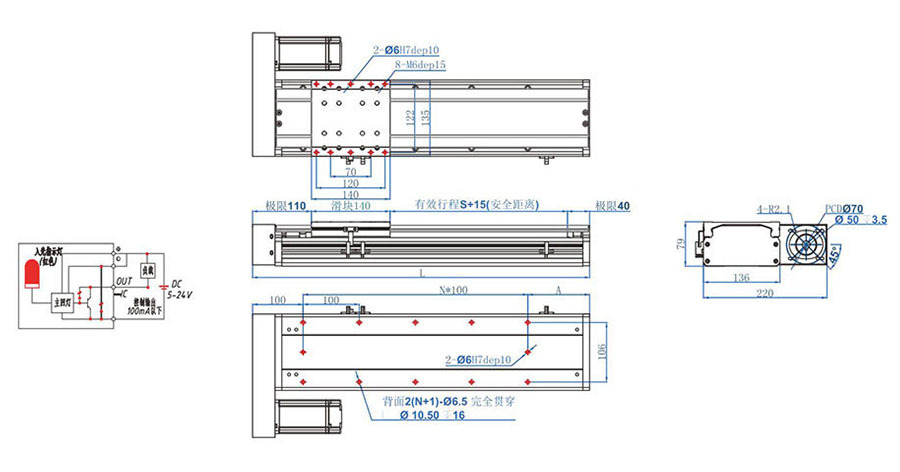

JDN135AC-FO:Motr Exposed

Working Strok	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
N	2	3	3	4	4	5	6	6	7	7	8	8	9	9	10	10	11	11	12	12
L	357	407	457	507	557	607	657	707	757	807	857	907	957	1007	1057	1107	1157	1207	1257	1307
A	112	62	112	62	112	62	112	62	112	62	112	62	112	62	112	62	112	62	112	62

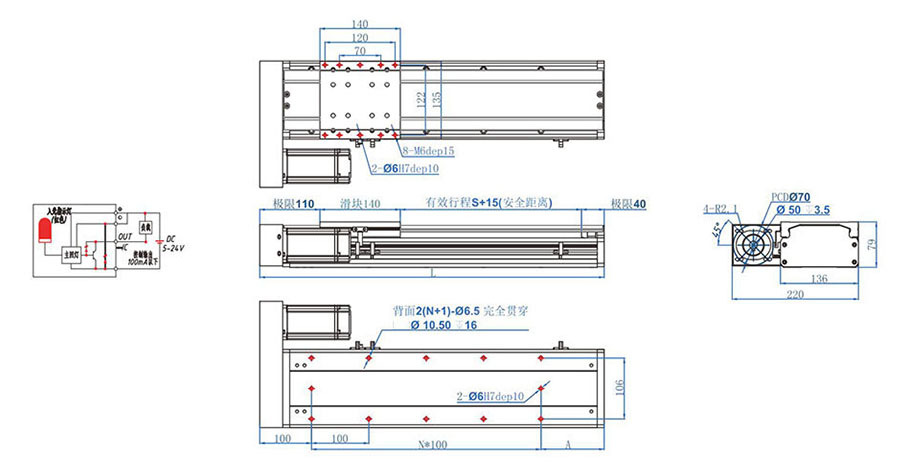

JDN135AC-F1:Built-FO

Working Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
N	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11	12	12	13	13
L	514	564	614	664	714	764	814	864	914	964	1014	1064	1114	1164	1214	1264	1314	1364	1414	1464
A	69	119	69	119	69	119	69	119	69	119	69	119	69	119	69	119	69	119	69	119

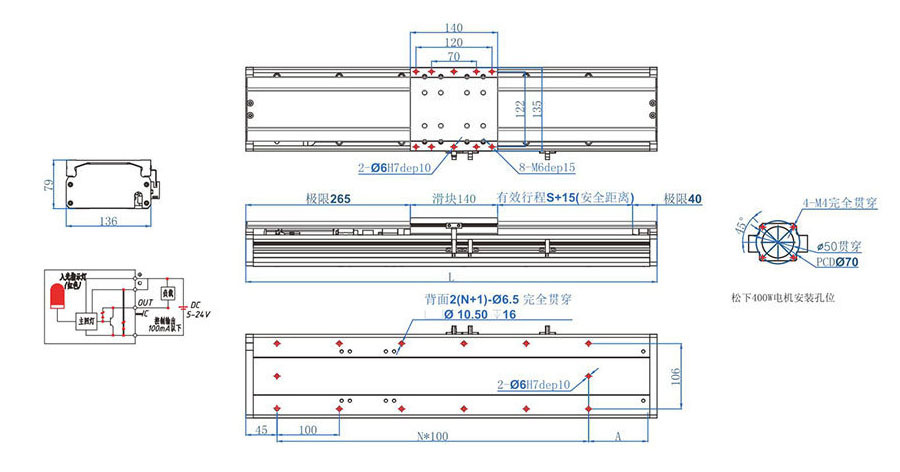

JDN135AC-FR:Motr Right side

Working Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
N	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11
L	355	405	455	505	555	605	655	705	755	805	855	905	955	1005	1055	1105	1155	1205	1255	1305
A	55	105	55	105	55	105	55	105	55	105	55	105	55	105	55	105	55	105	55	105

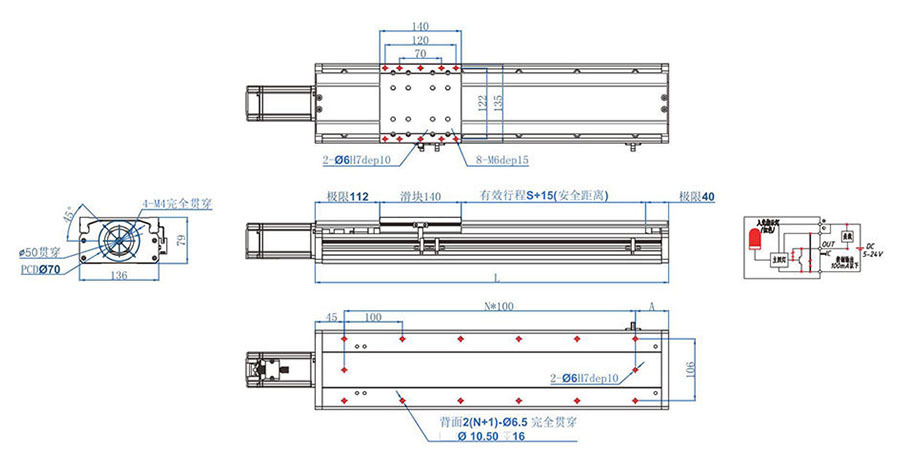

JDN135AC-FL:Motr Left side

Working Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000
N	2	2	3	3	4	4	5	5	6	6	7	7	8	8	9	9	10	10	11	11
L	355	405	455	505	555	605	655	705	755	805	855	905	955	1005	1055	1105	1155	1205	1255	1305
A	55	105	55	105	55	105	55	105	55	105	55	105	55	105	55	105	55	105	55	105
